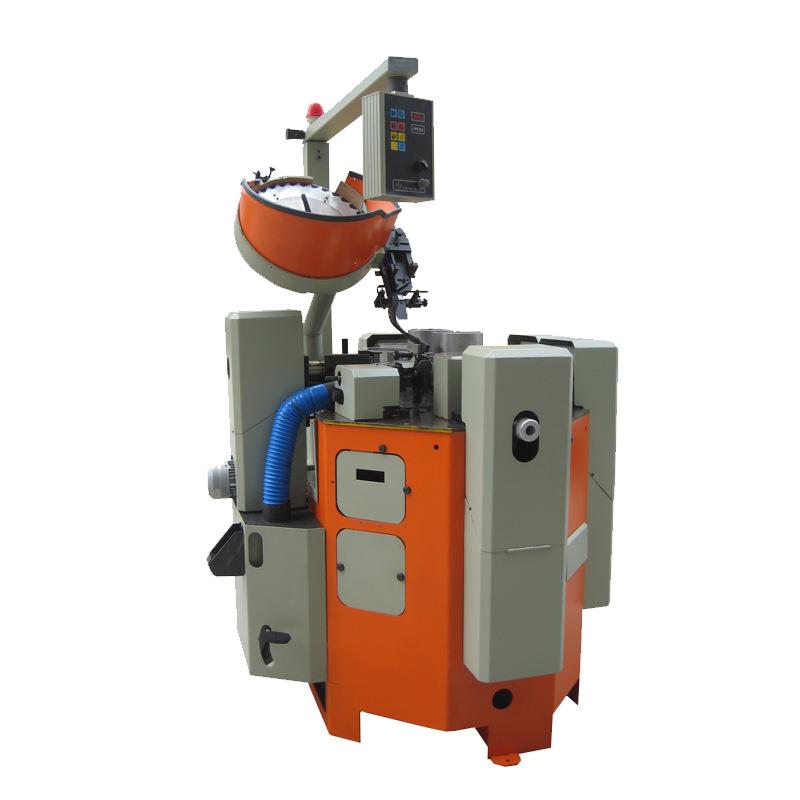

SH-3000 Multifunctional Double-head Button Machine

● This machine is a multifunctional button processing machine, suitable for single and double-sided processing of button blanks.
● It can process large button blanks, up to 90LIN. And it realizes electronically controlled stepless speed regulation, it’s generation range is from 10- 245 grains in one minute.
● Different types of workstations can be replaced to process buttons with various surface shapes and craft decorative buttons.
● At the same time, it also can be equipped with electric eye color identification device and laser color equipment to process complex patterns on the surface of the button blank.

Button making speed range: 10-245 pieces/minute
Maximum processing size: 12-90lin/8-57mm
Chuck distance: 20 mm
Standard maximum advance and retract stroke: 14 mm
Maximum advance and retract stroke that can be specified: 12 mm
Maximum button blank thickness: 20 mm
Dust extraction motor power: 1.1 kilowatts
Total power consumption: 5.57 kilowatts

Model

Name

Volume

Power

Net Weight

ZKJ 12#-80#

Button making machine

1360*1360*1950

5.5Kw

800Kilo
